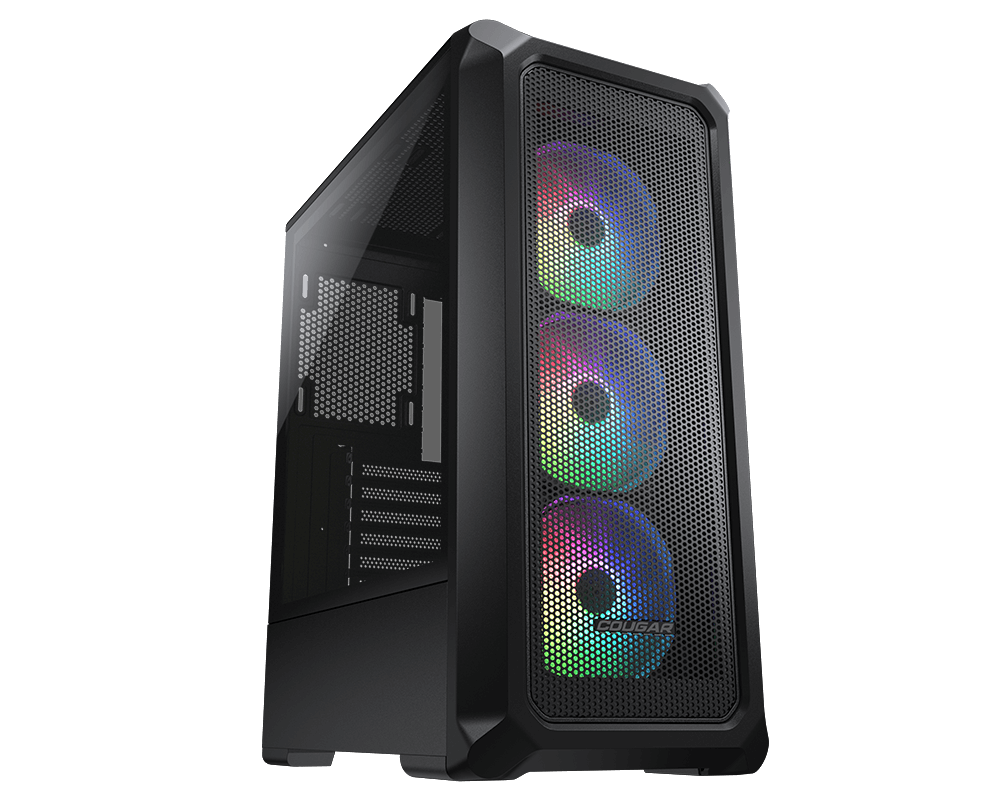

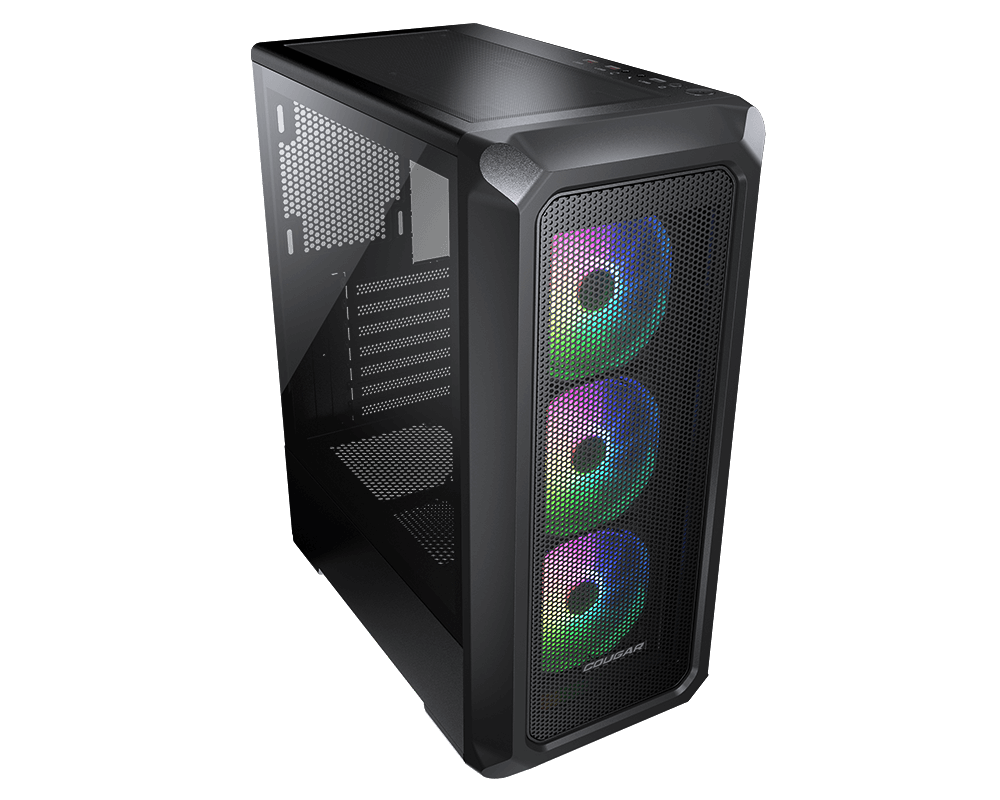

Cougar case Archon 2 Mesh RGB Black

Cougar case Archon 2 Mesh RGB Black:

General Overview

• Model: Cougar Archon 2 Mesh RGB Black
• Form Factor: Mid Tower
• Target Use: Gaming, compact enthusiast builds
• Design Focus: High airflow, RGB lighting, flexible component support

Motherboard Compatibility

• Supported Form Factors:
  • Mini ITX
  • Micro ATX
  • ATX

Physical Dimensions

• Case Dimensions (W x H x D): 210 x 470 x 380 mm
  • Inches: 8.3 x 18.5 x 15 in
• Chassis Material: Steel
• Side Panel: 3mm Tempered Glass (tool-less design)

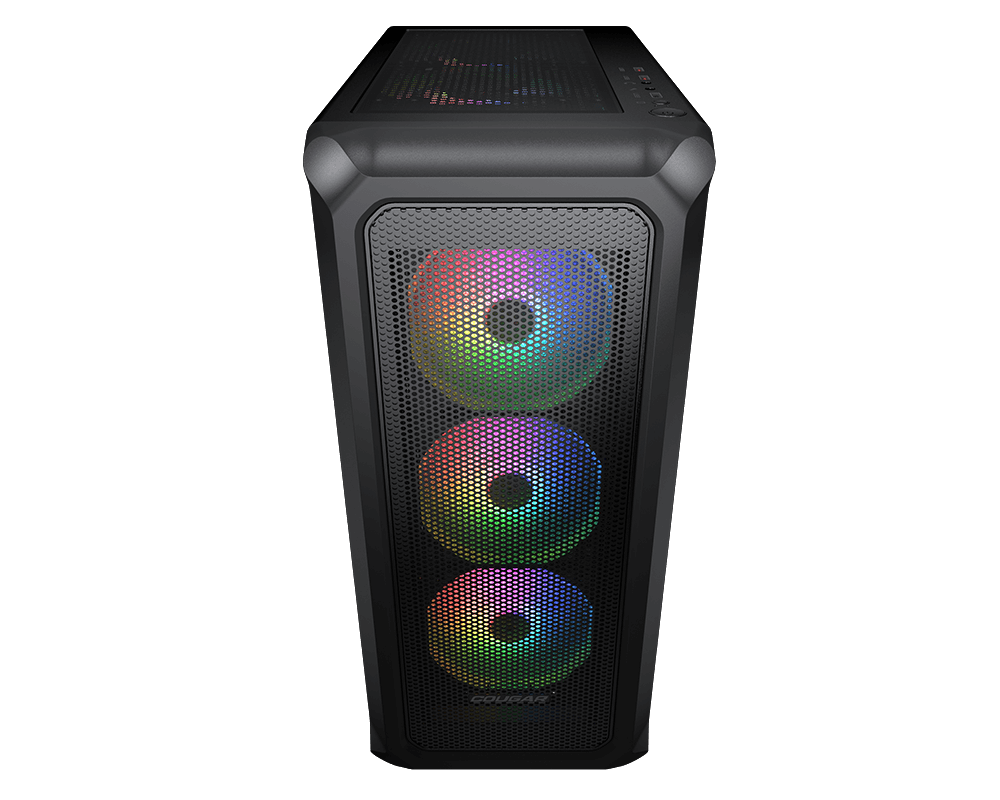

• Front Panel: Perforated mesh for improved airflow
• Color: Black

Expansion Slots

• Total Expansion Slots: 7
• Vertical GPU Mount Support: No (standard horizontal only)

Storage Bays

• 3.5″ Drive Bays: 2
• 2.5″ Drive Bays: 3 total
  • 2 dedicated
  • 1 converted from 3.5″ bay
• Included SSD Trays: 2

Maximum Component Clearance

• Maximum GPU Length: Up to 315 mm
• Maximum CPU Cooler Height: Up to 170 mm
• Maximum PSU Length:
  • 160 mm without front radiator
  • 140 mm if using 360mm front radiator

Cooling System

Pre-installed Fans:

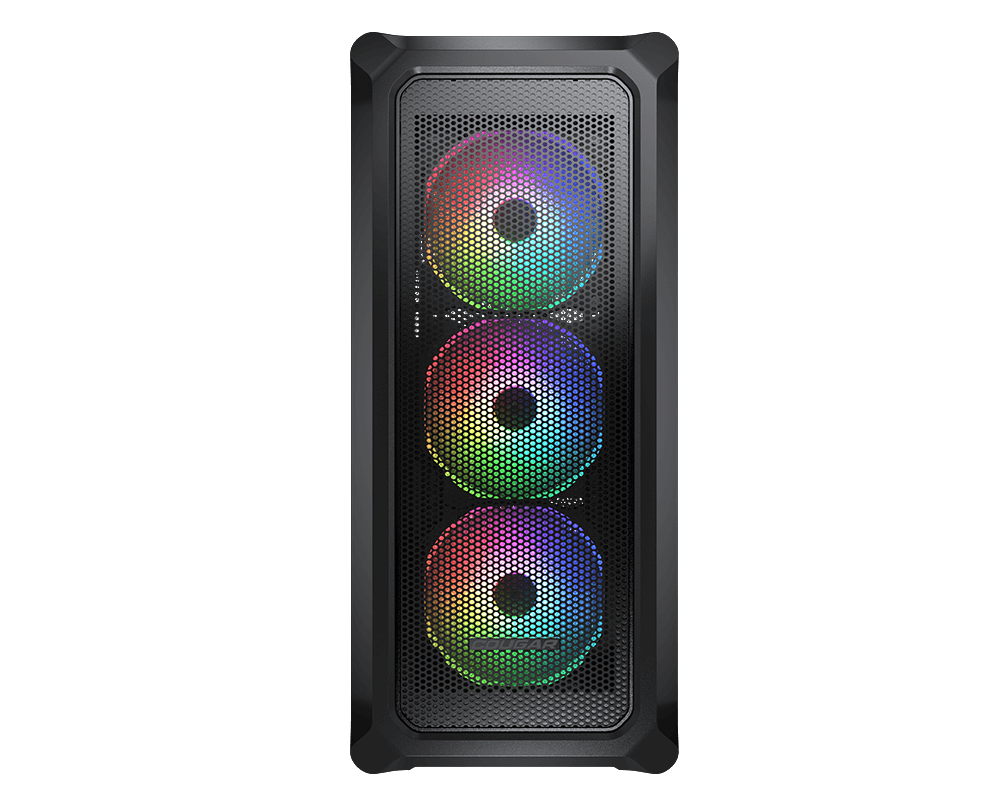

• Front: 3 x 120mm ARGB fans
• Rear: 1 x 120mm fan (non-ARGB)

Maximum Fan Support:

• Front: 3 x 120mm or 2 x 140mm
• Top: 2 x 120mm or 2 x 140mm
• Rear: 1 x 120mm
• Total Max Fans Supported: Up to 6 fans

Radiator Support:

• Front: Up to 360mm radiator
• Top: Up to 240mm or 120mm radiator
• Rear: Up to 120mm radiator

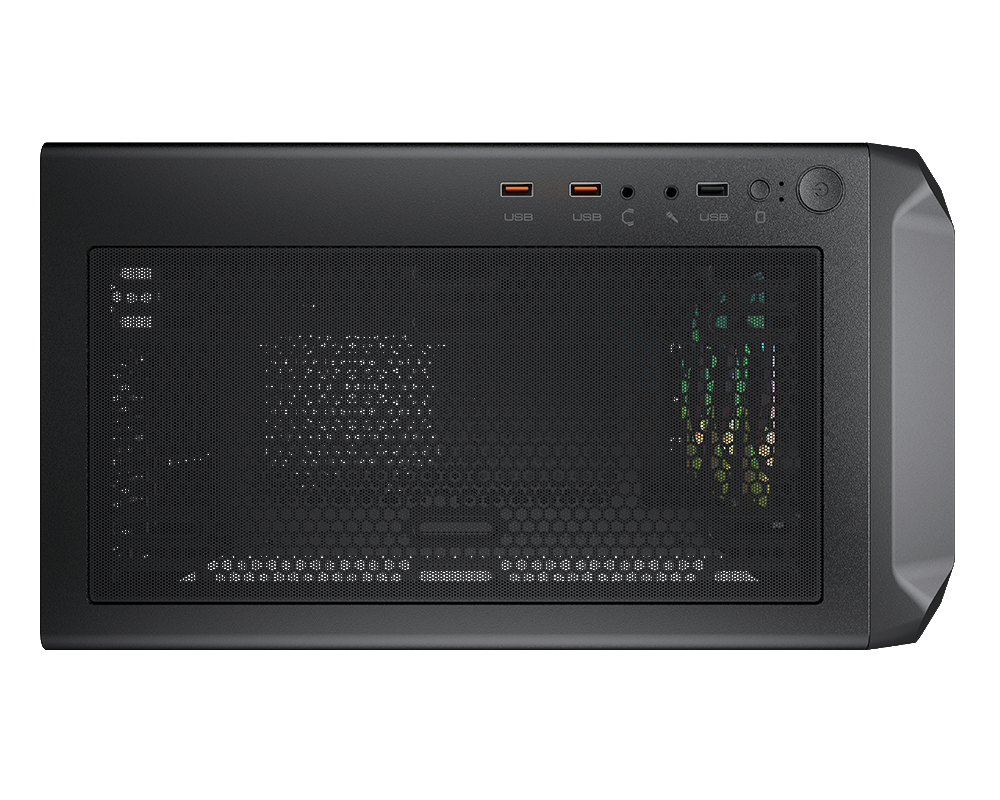

Front Panel I/O Ports

• USB 3.0: 2 ports
• USB 2.0: 1 port
• Audio Jacks: Mic + Headphone combo jack
• RGB Control Button: For quick lighting mode switching

RGB Lighting Features

• Pre-installed ARGB Fans: 3 x 120mm (front)
• RGB Sync Support: Yes – supports motherboard RGB sync via 3-pin ARGB header
• Control Options:
  • Onboard RGB button for standalone control
  • Syncs with ASUS Aura Sync, MSI Mystic Light, Gigabyte RGB Fusion, etc.

Cable Management

• Space Behind Motherboard Tray: Standard mid-tower layout for manageable cable routing
• PSU Shroud Option: May vary by variant

Included Accessories

• User manual
• Screws and cable ties
• Dust filters
• Fan screws and mounting hardware
• 2 x 2.5″ SSD trays
